MTB800E/MTB1200E/MTB2000E
Features
资源9 资源9

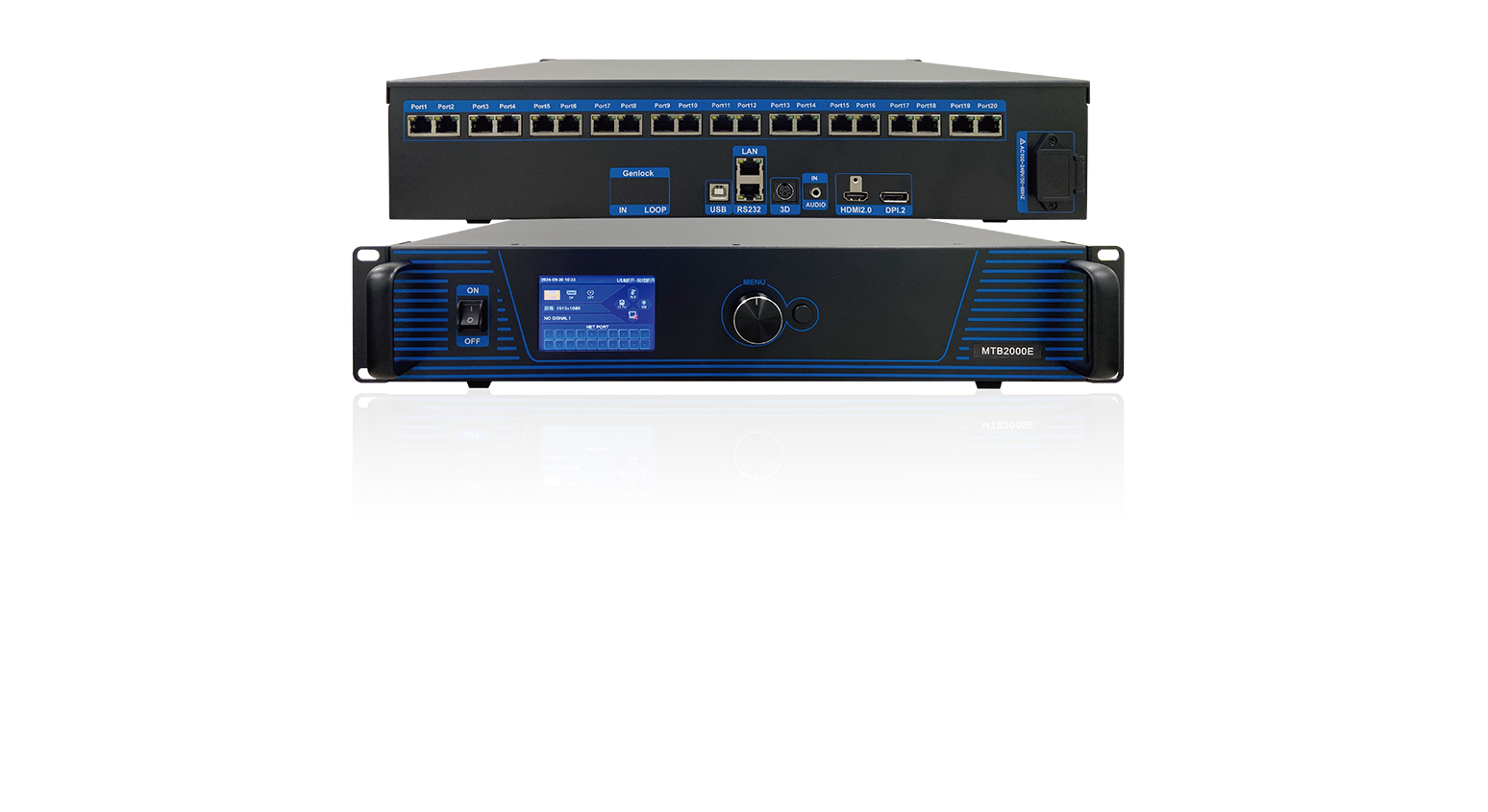

MTB2000 Sending Controller
Powerful Processing | Ultra-Stable Performance | High Cost-Effectiveness
The MTB2000 features the ability to receive various types of video signals,ultra-high-definition
full 4K×2K @60Hz image processing, and sending capabilities.It has powerful processing capabilities,
effectively improving loading utilization,with ultra-stable performance and exceptional cost-effectiveness
1856资源10@2x
1856资源11 1856资源11
Ultimate Loading Capacity
With 20 network port outputs, the entire unit can load up to 10.4 million pixels.
1856资源12@2x
资源15 资源15

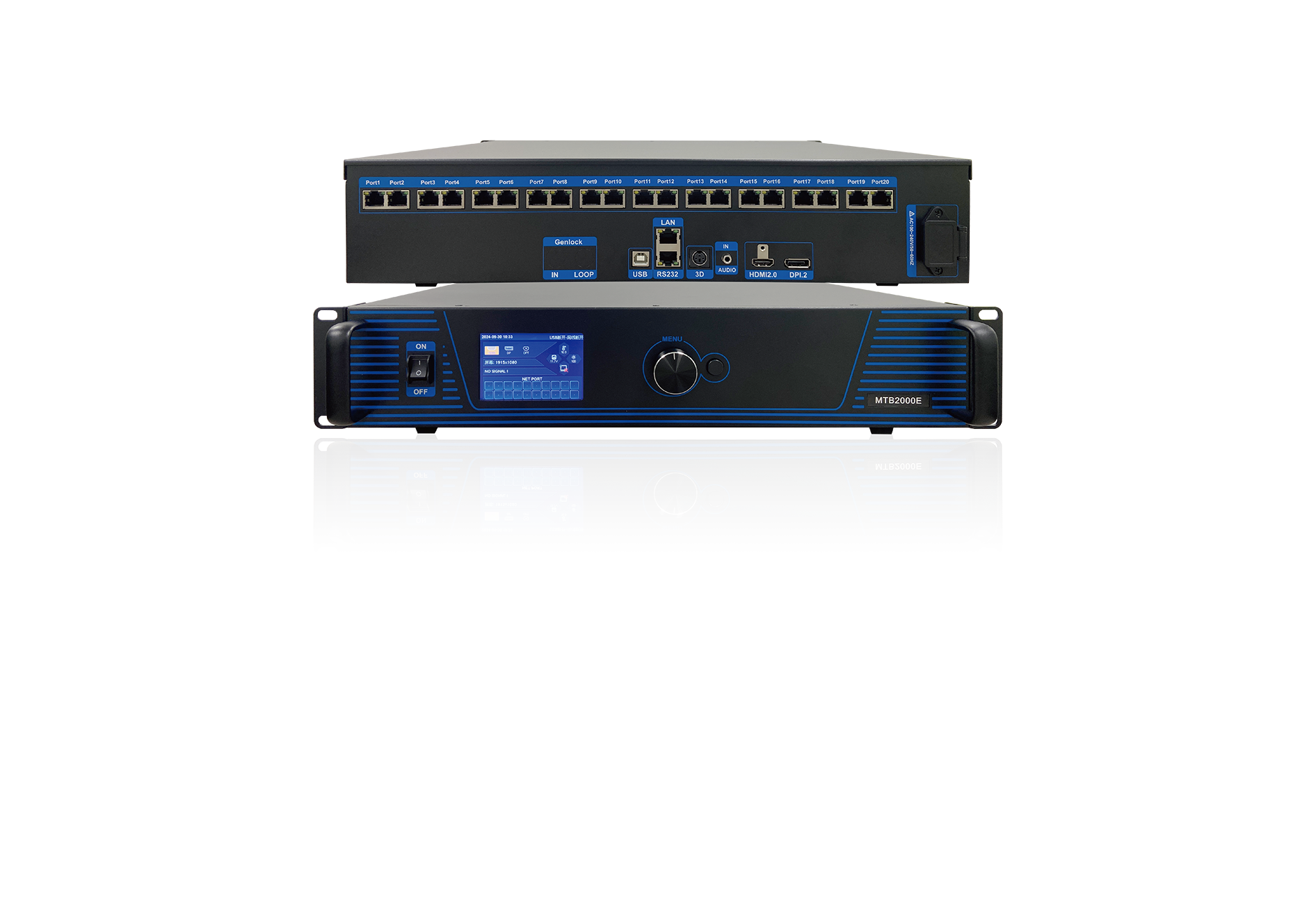

Rich Input and Output Interfaces
Capable of receiving various types of video signals, with ultra-high-definition full 4K×2K @60Hz image processing and sending capabilities.
1856资源13@2x
资源14 资源14
3D
Experience 3D Visuals with 3D Glasses. 3D Signals are Transmitted to the
Glasses via Connected 3D Signal Transmitters and Receivers.
1856资源14
185资源19 185资源19
HDR10
High Dynamic Range | High Color Depth | Wide Color Gamut
Experience richer colors, finer image quality, and true-to-life visuals.
185资源20@2x
资源17 资源17

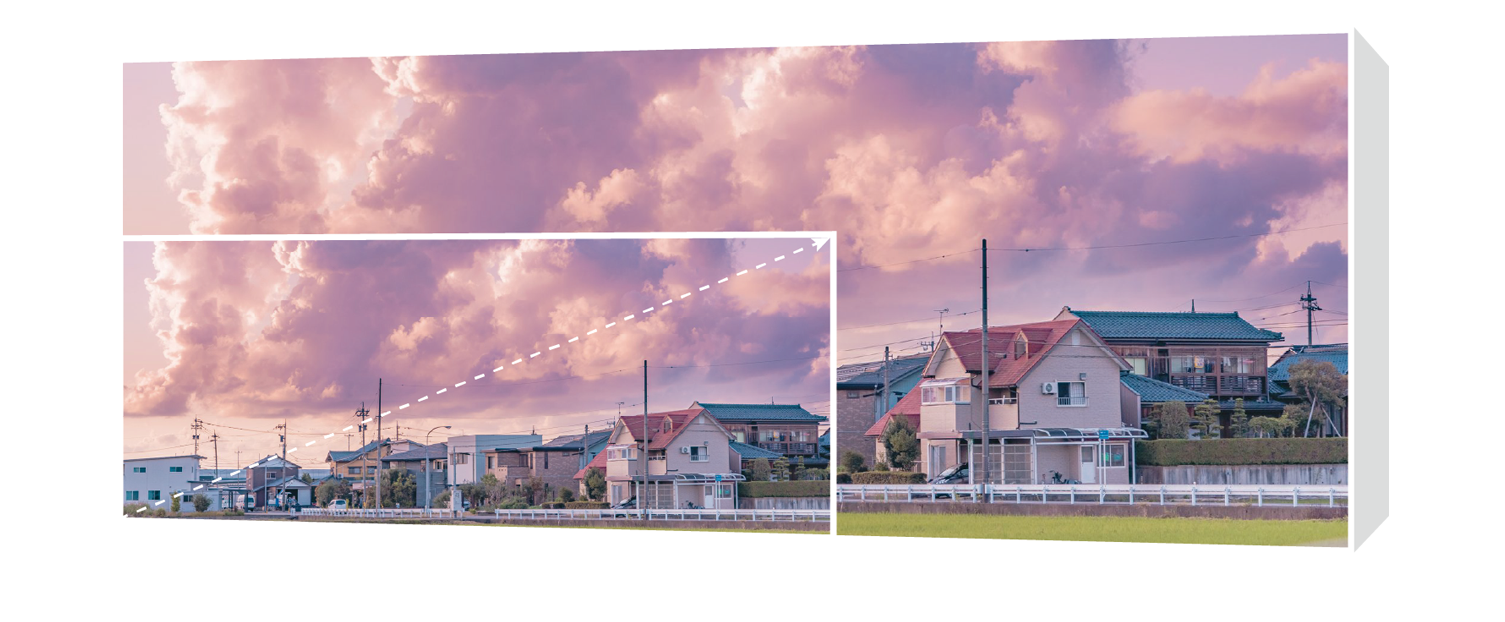

Lossless Scaling
Arbitrary scaling and windowing with the aspect ratio remaining unchanged.
1856资源15
资源18 资源18
Flexible Network Cable Wiring
The number of pixels carried by each network cable is calculated based on the actual number of loaded LED pixels
no longer calculated according to the traditional rectangular area. This improves the utilization rate of
the network port’s loading capacity, avoiding waste of device performance and network cables.
资源16@2x
资源19 资源19

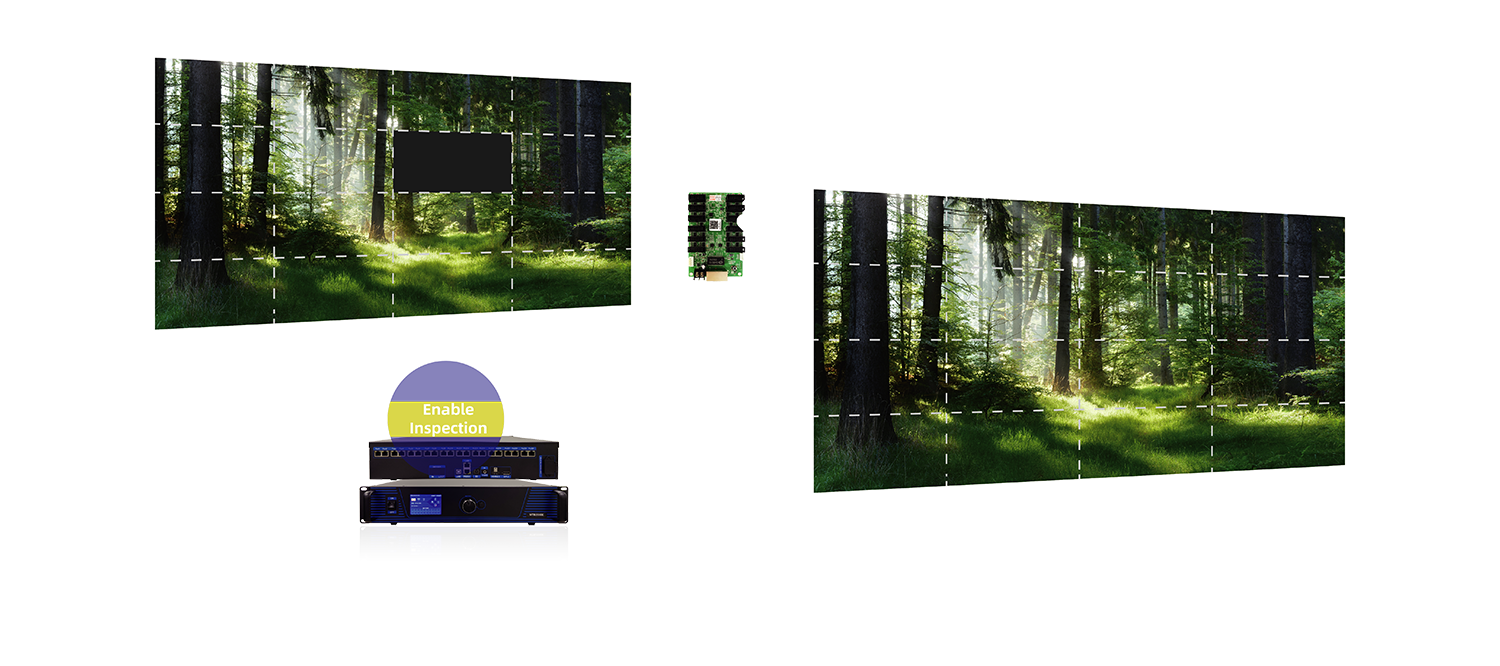

Automatic Data Recovery
Supports reading configuration data saved in internal flash to inspect screen configuration parameters
eliminating the need for debugging and making after-sales maintenance more convenient.
1856资源16@2x
Product
MTB800E
MTB1200E
MTB2000E
Loading Capacity 5.2 Million Pixels 7.8Million Pixels 10.40 Million Pxiels(Scaling) 8.29 Million Pixels(Pixel to Pixel）
Signal Input HDMI2.0×1、DP1.2×1、 Audio×1 HDMI2.0×1、DP1.2×1、 Audio×1 HDMI2.0×1、DP1.2×1、 Audio×1
Max Resolution 4K×2K@60Hz 4K×2K@60Hz 4K×2K@60Hz
Max Width/Height Widest：8192 Highest：8192 Widest：8192 Highest：8192 Widest：8192 Highest：8192
LED OUT 8 LED OUT 12 LED OUT 20 LED OUT
Front Panel Brightness Adjustment √ √ √
Independent Gamma Adjustment √ √ √
Multi-Device Splicing √ √ √
Audio Transmission √ √ √
Loop Backup √ √ √
3D √ √ √
FAST MAPPING √ √ √
Control Connections USB/LAN/RS232 USB/LAN/RS232 USB/LAN/RS232
