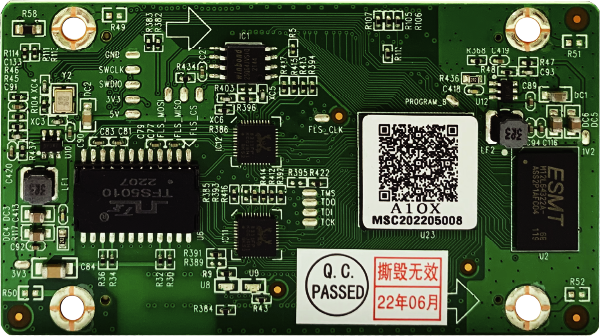

A10X Receiving Card

Compact Size / High Loading Capacity / Ultra Stable

The A10X is a small yet fully functional receiving card developed independently by Mooncell.
It features strong processing power, ultra-stable performance, and excellent cost-performance ratio.

Ultimate Loading Capacity

Supports up to 32 groups of parallel RGB data; capable of driving up to 512*640 pixels.

Robust Backups / Reliable Protection

Supports dual card backup, Enhancing Stability and Reliability

Elininate Color Variation

Calibrate brightness and chromaticity differences between each LED
to achieve a high level of uniformity across the screen, enhancing display quality.

Low Lattency

The signal output from the sending device stays under 1ms, with the receiving card maintaining a 1-frame delay,
ensuring smooth and synchronized display on the LED screen. This guarantees perfect real-time scene reproduction,
making it ideal for stage performances, sports events, and live broadcasting applications

22Bit

22Bit+ high-definition, high-quality image processing

Independent GAMMA Adjustment

Independent GAMMA adjustment for display calibration, image enhancement,
and correction to improve display performance, enhancing image quality and visual appeal.

construction of module structures

Within the receiving card's load capacity, a single receiving card can simultaneously support multiple modules of varying specifications

Auto-correction

Calibrate the brightness and chromaticity differences between each LED to
achieve high uniformity in brightness and color across the entire screen, enhancing display quality

Image Rotation

Enables display rotation at any angle

Configuration Readback

Configuration parameter readback allows retrieving receiving card settings
and saving them to the computer, reducing complex operations and improving efficiency

Experience 3D Visuals with 3D Glasses. 3D Signals are Transmitted to the
Glasses via Connected 3D Signal Transmitters and Receivers.

Product

L4S Pro

L8S

A10X

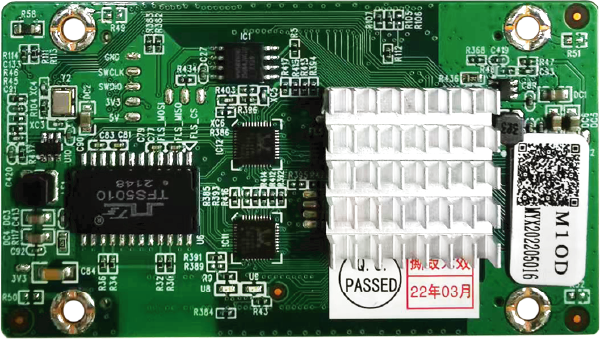

M10D

Loading Capacity	512x384	512x384	512x512	512x512
RGB Parallel Data Sets	32	32	32	32
Input Bit	8Bit/10Bit	8Bit/10Bit	8Bit/10Bit/12Bit	8Bit/10Bit/12Bit
High Gray Grade	18Bit	18Bit	22Bit	22Bit
Multi Layer Calibration	-	√	√	√
Advanced Seam Fixing	√	√	√	√
Gamut Adjustment	√	√	√	√
HDR	√	√	√	√
Independent Gamma Adjustment	√	√	√	√
Low Lattency	√	√	√	√
Loop Backup	√	√	√	√
Dual Card Backup	√	√	√	√
Smart Module	-	-	√	√
Box Marking	√	√	√	√
Irregular Structure	√	√	√	√
Cabinet Monitoring	√	√	√	√
Arbitrary Rotation	√	√	√	√
