A708/A75E/A712/A716 - Mooncell - Professional LED Display Control System Expert

A712 Receiving Card

Comprehensive Upgrade for Enhanced Stability and Reliability

An Independently Developed Receiving Card Featuring Powerful
Processing Capabilities, Ultra-Stable Performance, and Exceptional Cost-Effectiveness

Ultimate Loading Capacity

Handles Up to 192K Pixels and Supports 24 RGB Data Channels

Low Lattency

Configuration Readback: Retrieve current receiving card settings directly through the software.
Ultra-Fast Video Signal Output: video source signal latency under 1ms.

18 Bit

18Bit+ high-definition, high-quality image processing

Configuration Readback

Configuration parameter readback allows retrieving receiving card settings and saving them
to the computer, reducing complex operations and improving efficiency

Image Rotation

Supports LED Display Rotation in 90° Increments

Independent GAMMA Adjustment

Independent GAMMA adjustment for display calibration, image enhancement,
and correction to improve display performance, enhancing image quality and visual appeal.

construction of module structures

Within the receiving card's load capacity, a single receiving card can simultaneously support multiple modules of varying specifications

Product

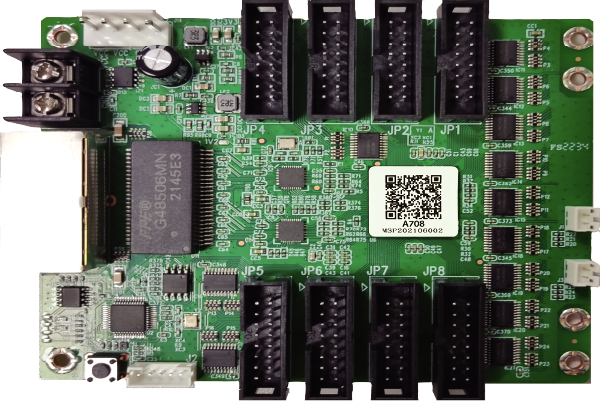

A708

A75E

A712

A716

Loading Capacity	512x256	512x256	512x384	512x384
RGB Parallel Data Sets	16	24	24	32
HUB Interface	HUB75E	HUB75E	HUB75E	HUB75E
Input Bit	8Bit/10Bit	8Bit/10Bit	8Bit/10Bit	8Bit/10Bit
High Gray Grade	18Bit	18Bit	18Bit	18Bit
Brightness&Color Calibration	√	√	√	√
Independent Gamma Adjustment	√	√	√	√
Low Lattency	√	√	√	√
Loop Backup	√	√	√	√
Box Marking	√	√	√	√
Irregular Structure	√	√	√	√
Arbitrary Rotation	√	√	√	√
